Structural Cross-Section of a Small DC Motor

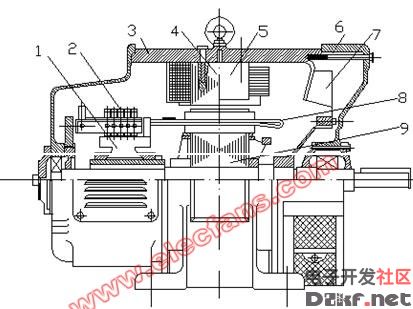

Figure 1.5: Structural Cross-Section of a Small DC Motor
Key components: 1—Commutator; 2—Brush Device; 3—Base; 4—Main Pole; 5—Commutation Pole; 6—End Cover; 7—Fan; 8—Armature Winding; 9—Armature Core
The working principle of a DC motor demonstrates how electromagnetic laws convert electrical energy into mechanical energy. For practical application, however, a DC motor must have a well-designed structure that satisfies both electromagnetic and mechanical needs. DC motors come in various configurations depending on their intended use.
Firstly, the stator section of a DC motor primarily consists of the main magnetic poles, commutating poles, base, and brush assembly. These components create the necessary magnetic field and facilitate electrical connections.

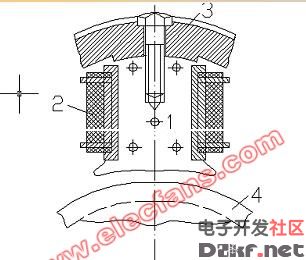

Figure 1.6: Main Magnetic Pole of a DC Motor
Key components: 1—Main Pole Core; 2—Excitation Winding; 3—Frame; 4—Armature
Secondly, the rotor portion of the DC motor includes the armature core and winding, the commutator, the rotating shaft, and a fan for cooling purposes. The rotor plays a crucial role in converting electrical energy into rotational motion.
Figure 1.7: Armature of a DC Motor
Key components: 1—Rotating Shaft; 2—Bearing; 3—Commutator; 4—Armature Core; 5—Armature Winding; 6—Fan; 7—Bearing
In addition to the basic components described above, DC motors also require precise engineering to ensure optimal performance and longevity. Factors such as material selection, manufacturing tolerances, and thermal management play significant roles in determining the overall efficiency and reliability of the motor.
For instance, modern DC motors often incorporate advanced materials like neodymium magnets to enhance magnetic strength while reducing weight. Additionally, innovations in insulation techniques help maintain consistent performance under varying environmental conditions. These advancements make DC motors suitable for a wide range of applications, from consumer electronics to industrial machinery.
Furthermore, the design of a DC motor's housing is equally important. A robust and aerodynamic casing not only protects internal components but also improves airflow around the motor, ensuring efficient heat dissipation. This is particularly critical in high-power applications where excessive heat buildup could lead to premature failure.
Overall, the combination of thoughtful design principles and cutting-edge technology ensures that DC motors remain a vital component in many technological systems today. Whether used in household appliances or complex automation systems, these motors continue to deliver reliable performance across diverse industries.
