The LIN bus is a cost-effective serial communication network designed for automotive distributed electronic systems. It serves as a complement to other high-speed automotive networks like CAN, making it ideal for applications where bandwidth and performance requirements are not extremely demanding, nor do they require high fault tolerance. Based on the SCI (UART) data format, the LIN bus operates in a single master/multi-slave configuration, which makes it a specialized variant of UART.
**How the LIN Bus Works**

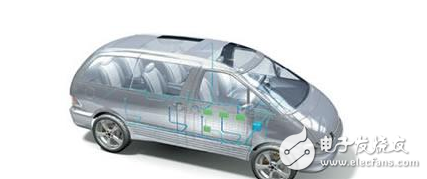

LIN nodes are typically located in close proximity, and data is transmitted over a single wire that can extend up to 40 meters. The master node connects to a 1kΩ resistor linked to the 12V power supply, while each slave node uses a 30kΩ resistor connected to the same supply. Each node powers the bus through a battery positive termination resistor, and can pull down the bus voltage using its internal transmitter. This setup ensures stable communication across the network.
**Main Control Unit**

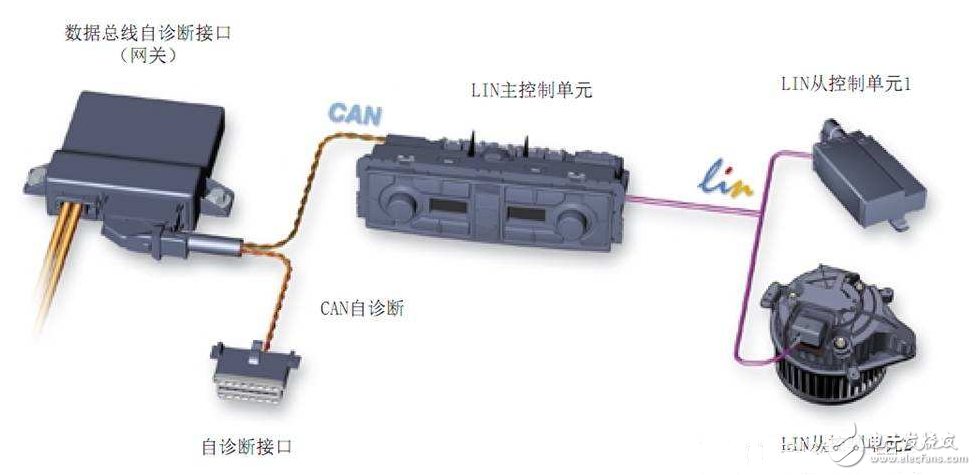

The LIN master control unit acts as an interface between the CAN bus and the LIN network. It monitors data transmission, sends message headers, and determines when and how information is sent onto the LIN bus. It also functions as a translator between the LIN master and slave units, enabling self-diagnosis of both the master and connected slaves.
**Information Structure of the Main Control Unit**
The main control unit initiates each data transmission by sending a message header, which includes a synchronization phase and an identifier byte. This identifier helps determine whether the data should be sent to a specific slave. The data segment contains the actual information, while a checksum at the end ensures data integrity. The master unit sends information in a round-robin fashion, ensuring all slaves receive their data in sequence.
**LIN Slave Control Unit**
In a LIN system, the slave control units operate under the control of the master. They only transmit data when instructed by the master. These units can be sensors, actuators, or individual control modules. Sensors act as input devices, converting physical measurements into digital signals for transmission via the LIN bus. Some components use a single wire for communication, simplifying the design.
LIN actuators are intelligent components that receive commands from the master control unit. They work with built-in sensors to monitor their operational status and respond to control signals. Slaves remain in sleep mode until a wake-up signal is received. Once active, they communicate with the master as needed, ensuring efficient and reliable operation within the LIN network.
