Since the replacement of the platform, air cooling has been used to suppress i7 6700K, it will inevitably become a short board. Let's change the heart into a water-cooled one, and don't want to be cheap. If you can't do the same with the wind-chill, then you'll think about it in the direction of a thousand dollars.
I heard that the captain’s home was leaking. EK is rare, and only the thieves H100iv2 and the cool god 240 are left. Two brands are famous in foreign countries and there are various belief ships in the country. TT has a 360 cheap row, but the chassis is a problem. After several twists and turns, the thought of getting on the boat was finally dispelled by the fan.
Is this fan, looks a bit like GT2150? However, this is absolutely impossible. The fan that feels the back of this sickle blade will be more forceful and receive the goods. It is also convenient to harm each other with the H100iv2 god in the group.
The size of this package is very capricious. After opening it is like this. The water-cooled head is fixed by the bottom cardboard, the cold tube is not squeezed in the box, and an ingredient package is attached next to it. The biggest benefit of this kind of packaging is the cold pipe, but it takes up more space than the commonly used egg plate. Cold heads only rely on a small part of the box to hold the brand new ones. If the second-hand fish trades, the old papers may become soft, and the cold heads will not fall out. They will swing freely in the box along the way. It's pit father. If you are buying and selling, still use transparent tape to fix the water-cooled head.
(Ku Ma Master Liquid PRO 240 water-cooled accessories)
(fan rubber sleeve)

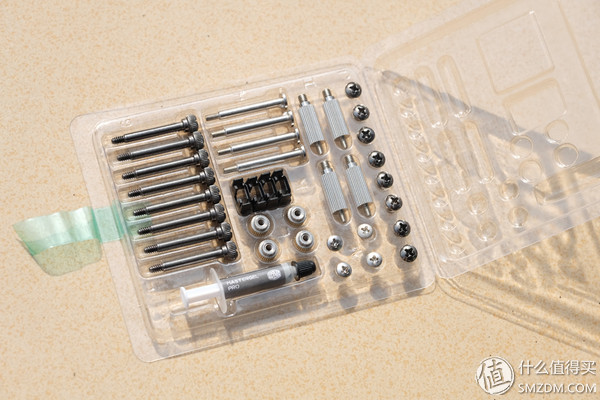

The accessories are nothing special, but this screw box is a little brilliant. For students with obsessive-compulsive disorder, this box is a double-edged sword. It looks beautiful. When you open it, you must be particularly careful. Otherwise, the parts fall out and you have a mental breakdown. The fan has a rubber sleeve for shock absorption. This is good.
Do not know what is attached to the silicone grease, packaging only wrote MASTERGEL PRO, and did not indicate that NANO, the description does not introduce the type of grease.
Then I found a name in Jingdong called MasterGel Pro, thermal conductivity 8W/mK. Can I add 60 oceans for NANO?
The sun-filled water is coming. To be honest, the appearance of cold exhaust is similar, manufacturers can only make a fuss on the cold head and fan. Looked at almost a template printed water, no freshness.
MasterLiquid PRO240's cold row thickness is moderately accurate, about 28mm, not a thick row, and the fins are quite characteristic.
The official website said that Liquid's fins are in contact with the cold pipe at right angles, which will lead to more thermal conductivity. If you look closely at this, fins are not a common wavy stripe. They are more square, and they are also new features.
Those students who are familiar with water-cooling will particularly care about cold pipes. The water-cooling is very complicated. The various parameters have great impact on water cooling. The quality of the water-cooled tube directly determines the volatilization rate of the cold liquid, which is the so-called shrinkage, that is, the cold liquid inside runs away. Therefore, the best choice for water cooling first to look for some information, FEP is currently the most forceful water-cooled pipe material, H100iv2 and Liquid are such water pipes. The price of cabbage, which is known as the price of God, does not need to be expected. Basically, it is the result of the demolition of the Western Wall.
There is a thing on the edge of the cold pipe that people don't understand. A warranty paper is also attached to it. It should be used for maintenance. Generally do not matter, do not move this sticker, after all, this product has a five-year warranty.
Differences in cold platooning are too little, and personalization is focused on water-cooled heads. Current water-cooled motors like to hide in cold heads, and cold heads have become a key part of manufacturers' rush. Isn't it? The Liquid's official introduction uses a dual-chamber design and jet-type water cooling. Spray your sister, ah, this is not the power, I can not see it. However, this is not surprisingly cool mother, after all, every household is in the cold head, and it is not very good to leave behind.
The cold head base looks a bit special and the bottom core contact part is relatively high. The official said this is a new type of CNC process. Because it is introduced in English, I can't understand it, I can only wait for the professional evaluation in the country. So, why not add the proud 3DVC soaking plate? Can not use water cooling.
PS: (Check it out, this kind of thick base is not just a cool mother's family. It may become a high-end water-cooled watershed in the future.)
Sure enough, there were many cold-headed articles and no photos were found. The two cold pipes are not horizontally arranged, and the cold head is separated by two layers, which is very similar to the official perspective. The upper layer defines cold water, and the lower layer is a hot water area that absorbs CPU heat. In order to extend the life of the motor, the motor is placed in the upper cold water area. Unfortunately, the official has not released a complete anatomical map and has not seen the specific location of the motor. 4PIN power module interface, in addition there are 2 empty pins, there should be a higher level of water cooling. Although my motherboard supports CPU_OPT speed control, it does not correctly identify the speed, which is paralyzed.
(Cool Cool Liquid Pro official picture)
The anatomy only finds this. For a long time, it was roughly said that the speed and flow of water at the base were increased. The speed of water is fast and the flow is high. It should be easier to dissipate heat, but it is really not able to understand what ghosts are in the paintings. I only understood the cold water above, and it turned hot.
Http://
When watching the video at station B, I discovered this video, perhaps looking for this thing all day long, triggering a lot of related content, and the associated searching ability of station B is also powerful, and it directly puts out the official video. But thanks to this, the pile of incomprehensible introductions is more specific. Ah, Aunt Zhang did not support B station video.
Cold head power supply line marked 125 °C VW-1, Baidu said this is a very strict heat test, not brick moved here, interested Baidu VW-1. Although the parameters are dazzling, one of the biggest concerns for water cooling is performance, noise, and longevity. Now one of the water-cooled prices is relatively extreme, either on the price of cabbage, or the nearest thousand. Liquid PRO240 belongs to the latter category, this kind of integrated water cooling hardly concerns the noise of the water pump. The life parameters given by the official are also relatively high, but well, there are absolute electronic products, I do not expect this life, and five-year warranty is more reliable. With my personality, it would be nice to be honest for 2 years.
This is the case with cold exhaust. Compared to one cold, I prefer this fan, not because of his appearance. The parameter is a 650~2500rpm PWM fan, and more specifically, he also has three adjustment modes.
Yes, this fan is very fresh and can adjust the operation mode on the back nameplate position. P, Q, S three gears indicate Performance (650~2500RPM), Quiet (650~2000RPM), Silent (650~1300RPM), minimum speed Consistent, the difference lies in the maximum speed. Just this location is a bit inconvenient. It is recommended that you set it to your own satisfaction mode and then install it.
Anyway, I still prefer this type of fan, and it is a good idea to work with the motherboard's PWM control. It may take into account that the maximum speed is somewhat high, and the fan cat ear uses a tougher material, and it can also resist earthquakes. Retail sales should not be cheap.
4PIN power supply wiring, nylon braided package, installed mandatory material.
This should be a new fan. Although the blades are translucent, they do not have LED lights. The ancients said: Since ancient times, God fan has no lights. It does not matter, to force on the line. The edge of the fan blade is somewhat special and should be based on the principles of air science. After thinking about my MSI GTX1070, this design is not only for decoration.
The two fans usually use one or two 4PIN cables, and one interface uses a very conspicuous red color. But I always feel no need.
The red interface is 4PIN, while the black is only 3PIN. The lack of a speed line is a very regular two.
The fan can be directly connected, clearly see the black interface less root line. However, these two fans do not make a difference.
Live operation
It is a donkey or a horse. Fans and water-cooled heads can be installed without tools, and the whole process is convenient. Only after the machine was found to forget to adjust the fan mode, the result was removed and made again. I chose the performance model with the highest performance (650~2500 RPM), and I feel that there is no waste in performance.
On the machine is also good, blue LED cold head, but unfortunately no RGB, looks like there is no water cooling RGB.
Xiaochao 4.5G running FPU test stability, the southern climate is not very good, a few days ago friends came from outside, have been hot cry.
MasterLiquid PRO runs at full speed and the CPU is stable at 72°C. My luck is not very good, this 6700K is a mine U, it will be very difficult to go upstairs again.
In addition, it is not known whether it is the sensor or the motherboard. The temperature of the hard disk is obviously inaccurate. Also found a black spot on the Z170A.
By default, the i7 6700K runs FPU with a stable temperature of 64°C. However, at this time, the fan has only 2000 rpm and does not achieve maximum performance. This also means that if you are not overclocking, Quiet mode will suffice, and the 2,000-round silent effect will be much better.
My host is next to the monitor and does not lay on the floor. Now prevailing side-by-side chassis, most playmates like to put the host on the desktop. Not only look good, but clean, fan noise alone will be more obvious.
With Asustek's software, this water-cooled fan has no apparent sound in 2,000 revolutions, which is basically smaller than a USB desktop fan, just like the Quiet mode. When you reach 2500 rpm, you can clearly distinguish the sound of the cold exhaust fan. The sound of the pump was barely audible. In addition, the motherboard OPT detected 9,000 revolutions. This is definitely an identification error. This Liquid PRO supports the water pump PWM, but the motherboard can not be correctly identified and can only wait for ASUS update. Force the fan to lower the number of revolutions. When the temperature comes up, you can hear the sound of a momentary stream of water.
The daily load of my home CPU basically comes from the game, the fan is controlled within 2000 rpm in the Quiet mode, and the GTA5 temperature is controlled between 62 DEG C and the 1080P full effect is set. In order to balance silence and heat dissipation, daily games can be controlled at this temperature.
The League of Legends does not reflect anything, but there are many players in this game.
feel Nearly a thousand yuan of 240 water-cooled heat is obviously not suitable for air-cooled comparison. There is also no radiator at the same level, and the final temperature will satisfy you.
As for the liquid-cooled Liquid PRO, the sound is quite good, especially the water pump. The fan needs to see the usage, but later I still use the Quiet mode (650~2000RPM). After all, controlling about 60°C is sufficient, and the extra performance is better for a better mute experience. If it is X99 platform, it may be useful. However, it is more troublesome to adjust the fan once. To remove the fan, thank you for using the thumbscrew. Why not put control buttons in a more convenient position?
It may be a new model that identifies some issues. Fortunately, there are many related presentations. The official parameters given for this water cooling are also more detailed.
Several other big brands also have detailed product introductions, like OC3 water-cooled Chinese introduction page is very good, but unfortunately I do not like rubber tube.
A friend who lives in Canada said that this cold water came out earlier on their side and the domestic speed was a bit slow. Internationalization is a common problem and habits are just fine.
Talk about the pros and cons of Liquid Pro. The cold fins have been improved very well. Although the officials have introduced many advantages, they have some similar designs. For example, small fins on the base, and students who have studied water cooling know that Tt water has a similar design. From the official picture, Cool Mam has changed the position of the pump and the water pump as well as the fins. More difficult to say, Baidu understood at a glance.
The so-called coming from behind, the things that come out later will always be stronger than the previous ones, otherwise there is no need to exist. The H100i <Ice 240M <H100i GTX was also the reason (now GTX renamed H100i v2). It may be that the high-end one-piece water is too small for people to use, and even the TT cannot raise interest.
The most popular high-end 240 water-cooling has no more brands, and there is no new product online (H100iv2 is new). The water-cooled players in the group are all H100iGTX and Ice God 240. Originally wanted an upset water play, then gave up. To be able to do this when the mouse is not done will be very painful and costly.
Split water is eliminated. As for the 280-row, the 140mm fans that are easy to use are still very few. Perhaps it is a process problem. The 140mm fan is not as powerful as it is supposed to be. There are not many varieties. Some 280 rows are thin, and the amount of irrigation is similar to that of 240 rows. It may be because 280 water cooling is not popular (PS: Cool Mom's 280L is almost). TT has an expensive 360 ​​drain, but chassis compatibility is a problem. Although the chassis can support 360 rows, it can only be installed in the front, if the top supports 360 rows just fine.
Since the bird has a fan, Liquid Pro is equipped with a 120mm new fan. It is recommended to use the Quiet mode (max. ≤2000 RPM) and the sound effect is satisfactory. Pulling up again, the noise increase is more obvious, except that the position of the button in this mode is more painful. After that I still want to change two GT2150 up.
At the end of the sentence, the improvement of water cooling performance is driven by the market interest among brand manufacturers. AMD is still in the doldrums. The improvement in water-cooling performance is similar to that of today's Intel, who can only squeeze their own toothpaste. The strongest weapons in the family are always at the end, so ZEN should be very good next year. After all, this may be the final battle for AMD.
A few days ago the temperature was too high, the typhoon successfully landed today, plus the typhoon BUFF water cooled directly for a sample. However, before the typhoon arrived in Guangzhou, it had dissipated. With the cool weather and silky drizzle, I suddenly remembered a chocolate.
The i7 6700K silent running FPU, the fan is stable at 1600±RPM, can be said to be more than adequate.
Take a picture this time.
Overclocking 4.5G, temperature and fan speeds have all increased slightly, which is also reasonable. The weaker i7 overclocking is very thankless. It seems that the 100 oceans packed in English boxes are really just a box.
In fact, the data does not represent anything, but it reflects a situation. In addition, because of the identification problem, I can't control the speed of the pump, and there is no way to determine the speed of the water flow.
In addition, some high-end motherboards themselves have the ability to adjust different PWMs, so that the function completely crashes. This makes the cooling fan adjustment mode only the reference of the official guidance. Today's high-end motherboards have strong integration capabilities, and crashes with features of other accessories are nothing new. In the end, practicality is not practical, but you can only see it.
Not only temperature
Run the game, the default PWM seems to control the CPU in the 60 °C range, but this time the water cooling speed is much lower, the game Gaga did not record the fan, the actual only 1600 not. Of course, it is also possible to let water-cooling run at full speed. It just makes no sense. It only adds noise.
As long as the CPU is stabilized in a relatively good temperature range, the rest can reduce the burden on the radiator, slow down the mechanical bearing speed can also reduce noise. Therefore, it does not make much sense to find a cold weather that mentions the highest speed of the water cooling speed.
The figure above is a machine friend who is similar to me in the group, with the same water cooling and CPU, the motherboard is AR. Chassis fan is still more than I do not want to say.
The environment in which the robots live is different. There is no way to determine the performance of the radiator. Only know that someone's home water pressure 6700K 4.5G below 60 °C, how do you know if his home is snowing?
KnotKnown practical advantages:
Double-layer water pump, motor in cold water area, without motor heat.
4PIN pump power supply, PWM adjustment speed, this is really useful.
The fan is still relatively quiet at 2000 RPM, but it is not enough to increase the 2500 RPM.
FEP cold pipe, this hard requirement, otherwise the cold liquid runs too fast and the service life is too short.
In fact, these were seen before starting. Square fins do not know how practical, if other brands follow in the future, it will prove to be awesome. The remaining advantages are similar to the high-end water next door. The test environment is used as a reference. As for the merits and demerits, consider yourself.
Disadvantages: There are no practical shortcomings. Like all expensive water-cooling, prices are disadvantages, and free is the best. The rest are short boards that do not have relative deviations from practicality such as RGB.
